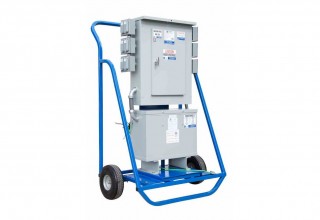

Larson Electronics Releases Temporary Power Distribution System, 15 kVA, 250V to 120/240V 1PH

MGL-250V.PH-15KVA-120.240V-4X30.120-20C 1

Larson Electronics, a Texas-based company with over 40 years of experience spearheading the industrial lighting and equipment sectors, announced the release of a 15 kVA temporary power distribution system that converts 250V AC electrical current into 120/240V AC single phase. This unit allows operators to safely tap into and distribute power from generators and direct grid power. This power distribution system provides operators the ability to power their 120V equipment from a single system.

The MGL-250V.PH-15KVA-120.240V-4X30.120-20C power distribution system features 20 feet of #8 Type W cord that brings three-phase 250V power to the NEMA 3R 60-amp 250V three-phase primary disconnect, which has two 60-amp time delay fuses, and passes 250V single-phase through to the transformer. The transformer converts 250V to 120/240V AC single-phase 60Hz and passes the current to the secondary side, which feeds a NEMA 3R 100-amp 120/240V single-phase main lug only panel. The secondary side features four 30-amp 1-pole 125V breakers that protect four 30-amp 125V L5-30R receptacles.

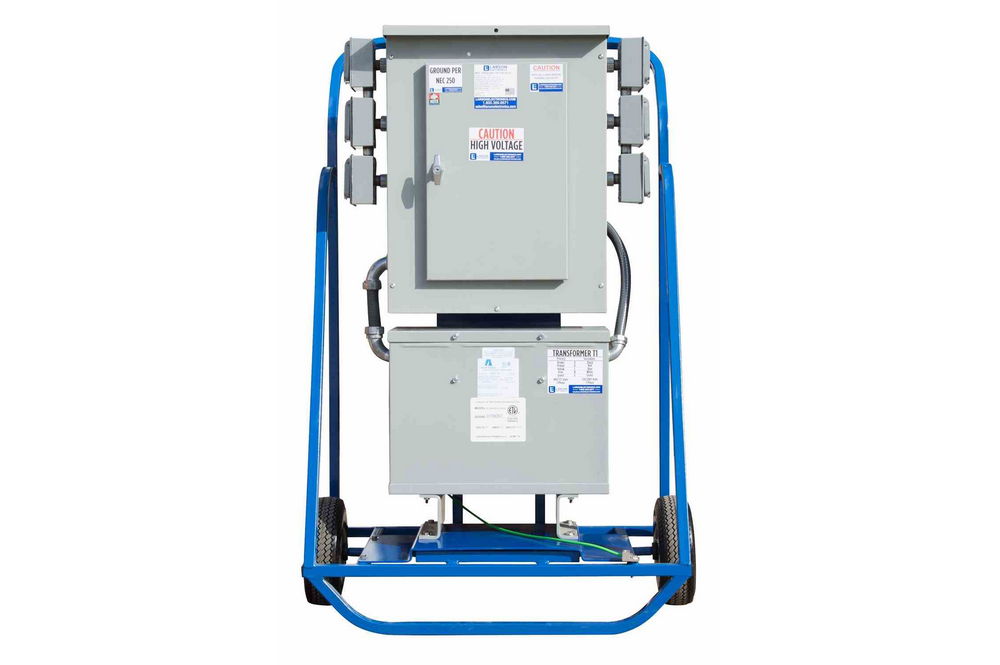

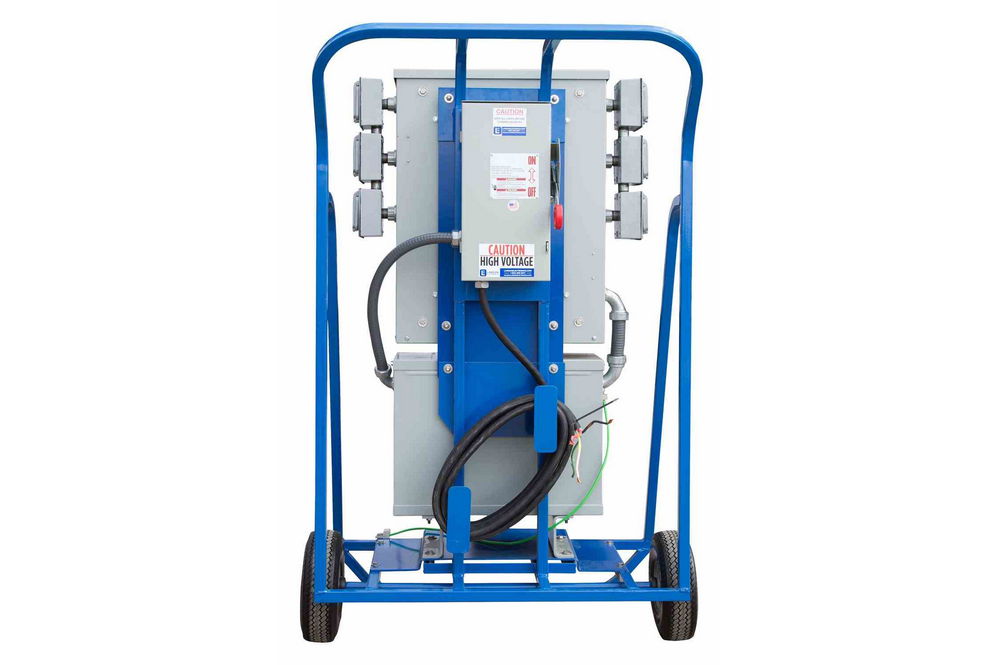

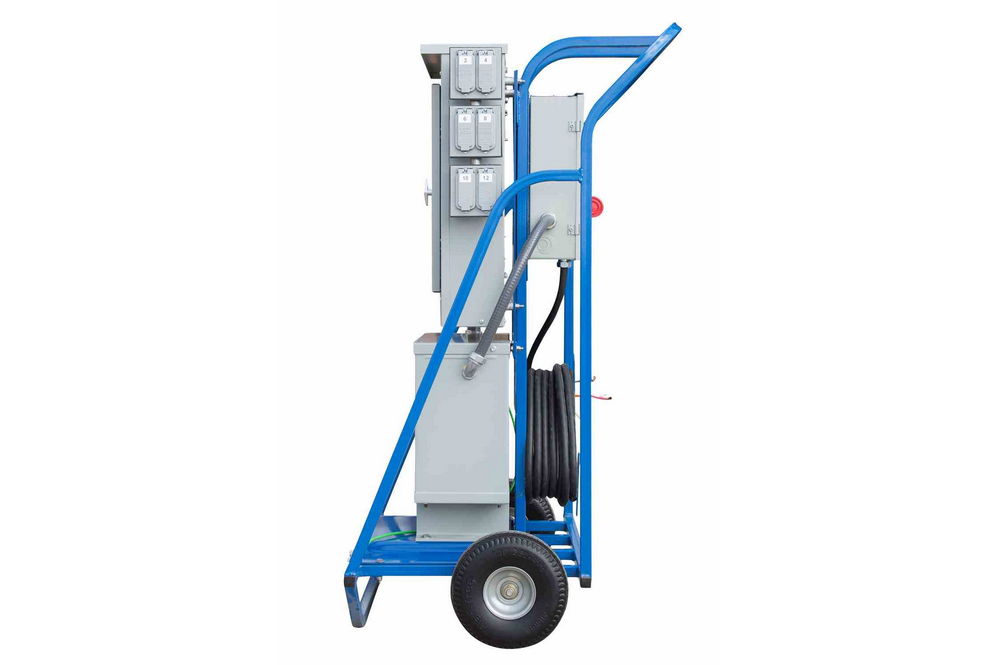

Larson Electronics’ temporary power distribution system features a transformer and load assembly that is mounted to a powder coated steel dolly cart style frame. The transformer is grounded to the frame via a grounding lug that is provided. Suitable applications for this unit include indoor and outdoor use, construction sites, plant maintenance and turnarounds, and more.

About Larson Electronics LLC: Larson Electronics LLC is a manufacturer of industrial lighting equipment and accessories. The company offers an extensive catalog of industry-grade lighting and power distribution products for the following sectors: manufacturing, construction, food processing, oil and gas, military, marine and automobile. Customers can benefit from the company’s hands-on, customized approach to lighting solutions. Larson Electronics provides expedited service for quotes, customer support and shipments.



For further information, please contact:

Rob Bresnahan, President and CEO

Toll-free: 1-888-351-2363

Int’l: 214-616-6180

Fax: 903-498-3364

E-mail: [email protected]

Source: Larson Electronics
